Power your car audio system from a standard AC wall outlet—without running your vehicle.

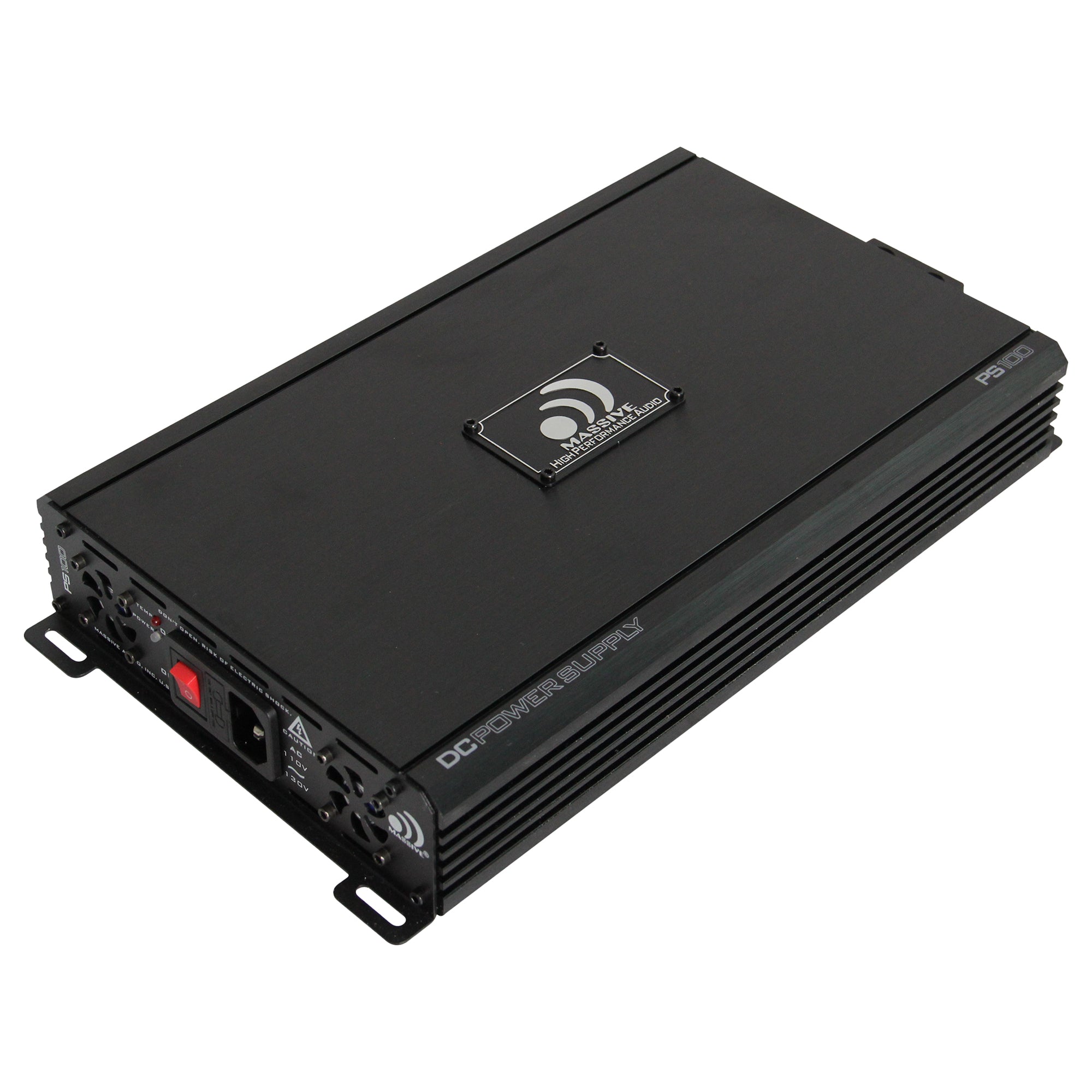

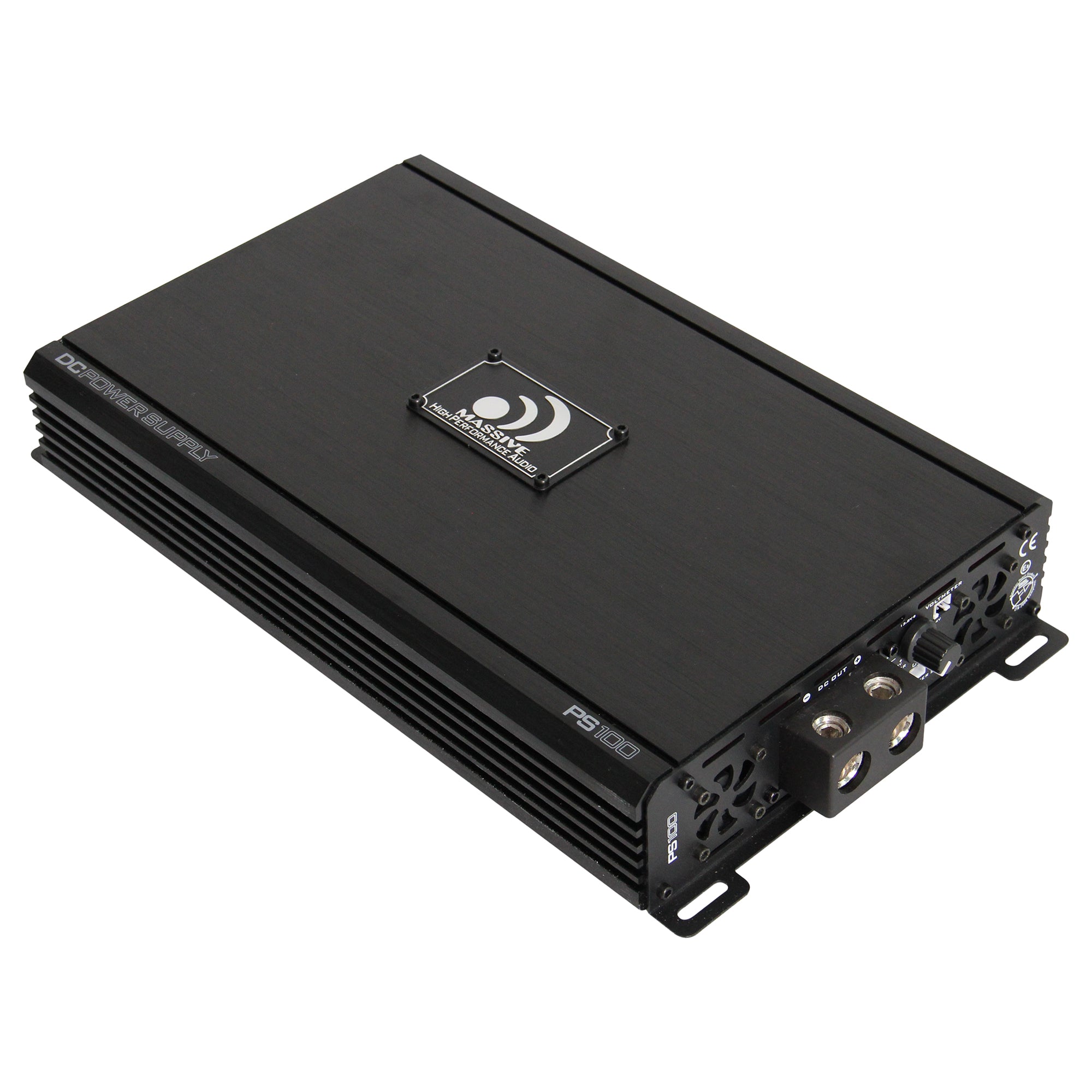

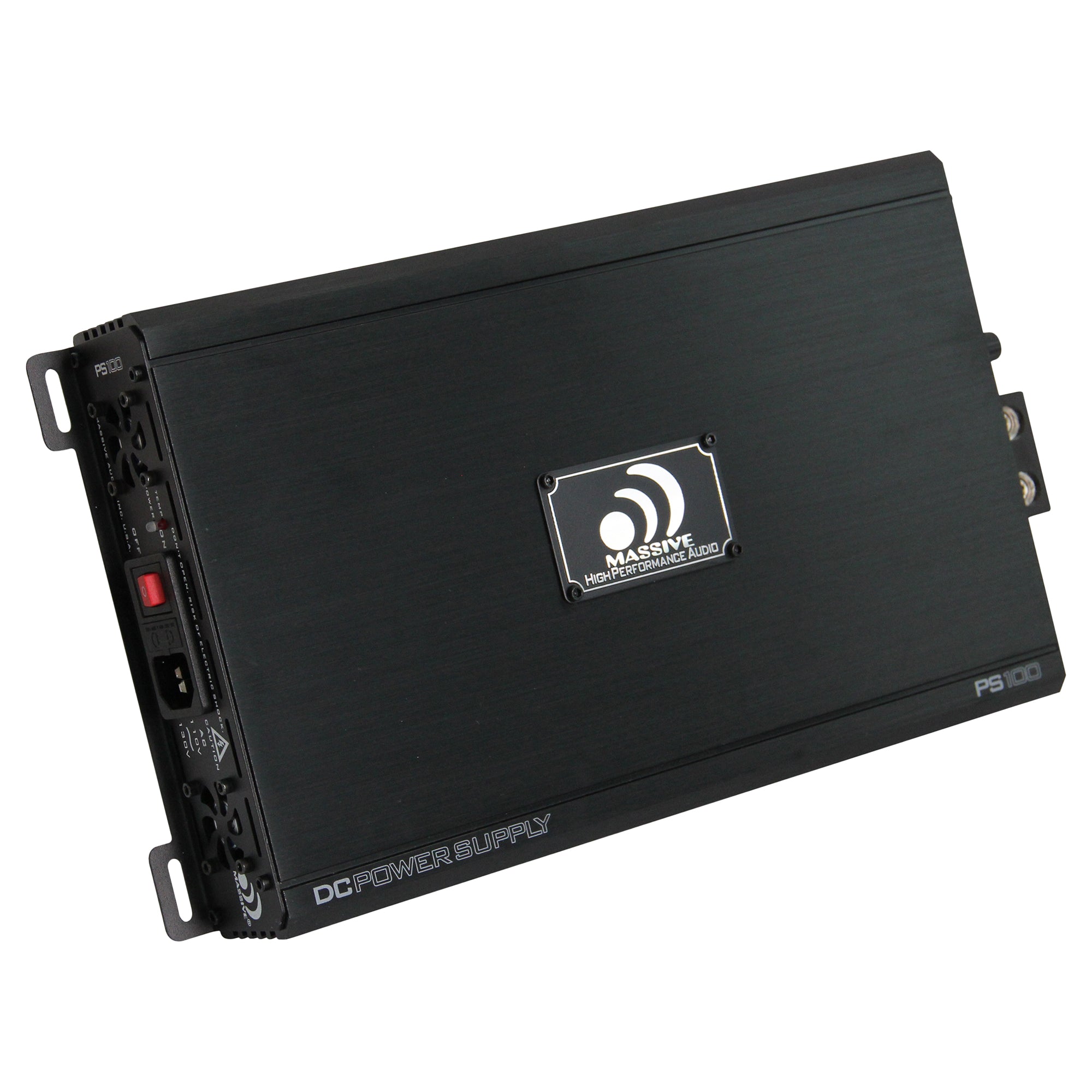

The Massive Audio PS100 converts 110–130V AC household power into adjustable 1–16V DC power, delivering over 100 amps of DC current to power car audio amplifiers and other 12V equipment outside of a vehicle's normal electrical system.
Perfect for showroom displays, demo boards, car shows, test benches, and other stationary car audio installations, the HPS100 provides regulated DC power without relying on your vehicle's alternator or draining its battery.
Need more current? The PS100 is linkable, allowing multiple units to work together to supply over 400 amps of DC current for larger, high-power systems.
Built for demanding applications, the HPS100 features an adjustable regulated voltage output up to 16V, dual internal cooling fans, a remote-mount LCD voltage display, and automatic overload protection.
AC power in. Car audio power out.

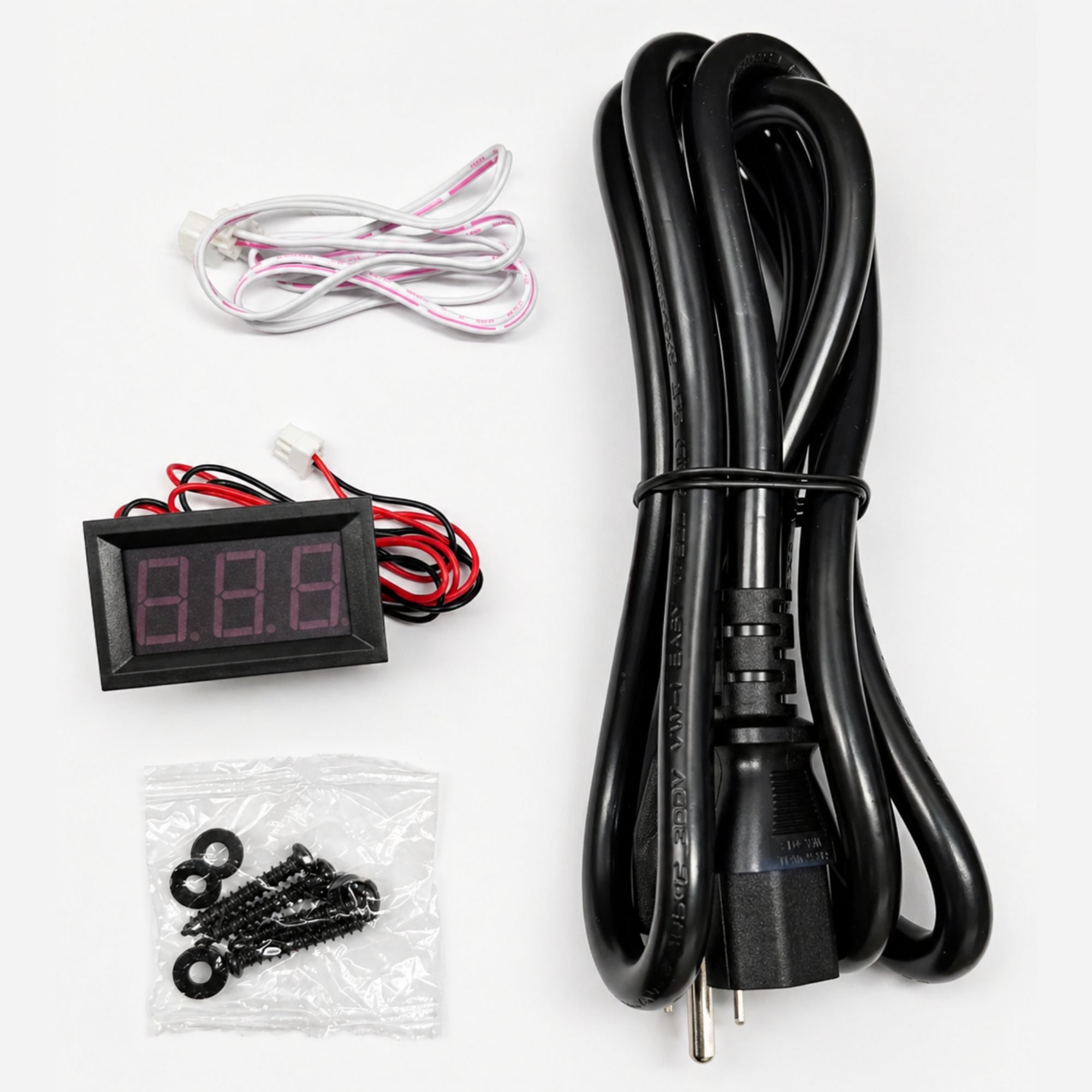

ACCESSORIES:
• Power Cable
• Voltage Meter
• Mounting Screws
• Linking Cable (Up to four units)
- Adjustable Regulated Output Voltage 10~16V
- Up to 100 Amp Output Current
- Cooling Fans
- Thermal/ Current Overload Shut Off Protection
- Combo Output Connectors Act as Both Binding Posts & Banana Plug Terminals
- Remote Mount LCD Voltage Display
- Link Up to 4 Units for Up to 400 Amps of Current
- The PS100 Converts standard 110-130V AC Household Power to an Adjustable 10~16V DC Power and Supplies Up to 100 Amps Continuously
- The BP-PS100 is a Multi-Purpose Unit Great for Show Room Displays, Car Show Events, Demos and Test Benches
| Design | Switching Type |
| Input Voltage | 120V AC ± 10% |
| Input Frequency | 60Hz |
| Adjustable Output | 10V~16V DC ± 0.5 Volts |
| Output Current | 100 Amps DC Continuous (Maximum) |
| Line Regulation | Less Than ± 5% |
| Load Regulation | Less Than ± 5% |
| Efficiency | More Than 85% |
| Overload Protection | More Than 100 Amps |
| Output Ripple | 150MV RMS |
| Protection Temperature | 75°C |
| Power Switch | 15A/ 250V AC |
| Dimension | 2.2"H x 7.5"W x 11.9"L |
