DSP48 - 4-Input / 8-Output Digital Signal Processor with 15-Band EQ & Bluetooth® Audio Streaming
- DESCRIPTION
- Manuals & Downloads
- FEATURES
- SPECIFICATIONS
- SHIPPING & RETURNS
Take control of your vehicle’s sound with the Massive Audio DSP48 Digital Signal Processor. Featuring four high-level or low-level input channels, eight independently configurable RCA outputs and 8 Vrms RCA output voltage, the DSP48 provides flexible integration with factory and aftermarket audio systems.
Fine-tune each output channel with selectable 7-band or 15-band parametric equalization, adjustable crossovers, individual channel levels, 0°/180° polarity control and precise time alignment. Input summing allows signals from separate factory speaker channels to be combined, while custom routing lets you configure the outputs to match your amplifier and speaker setup.

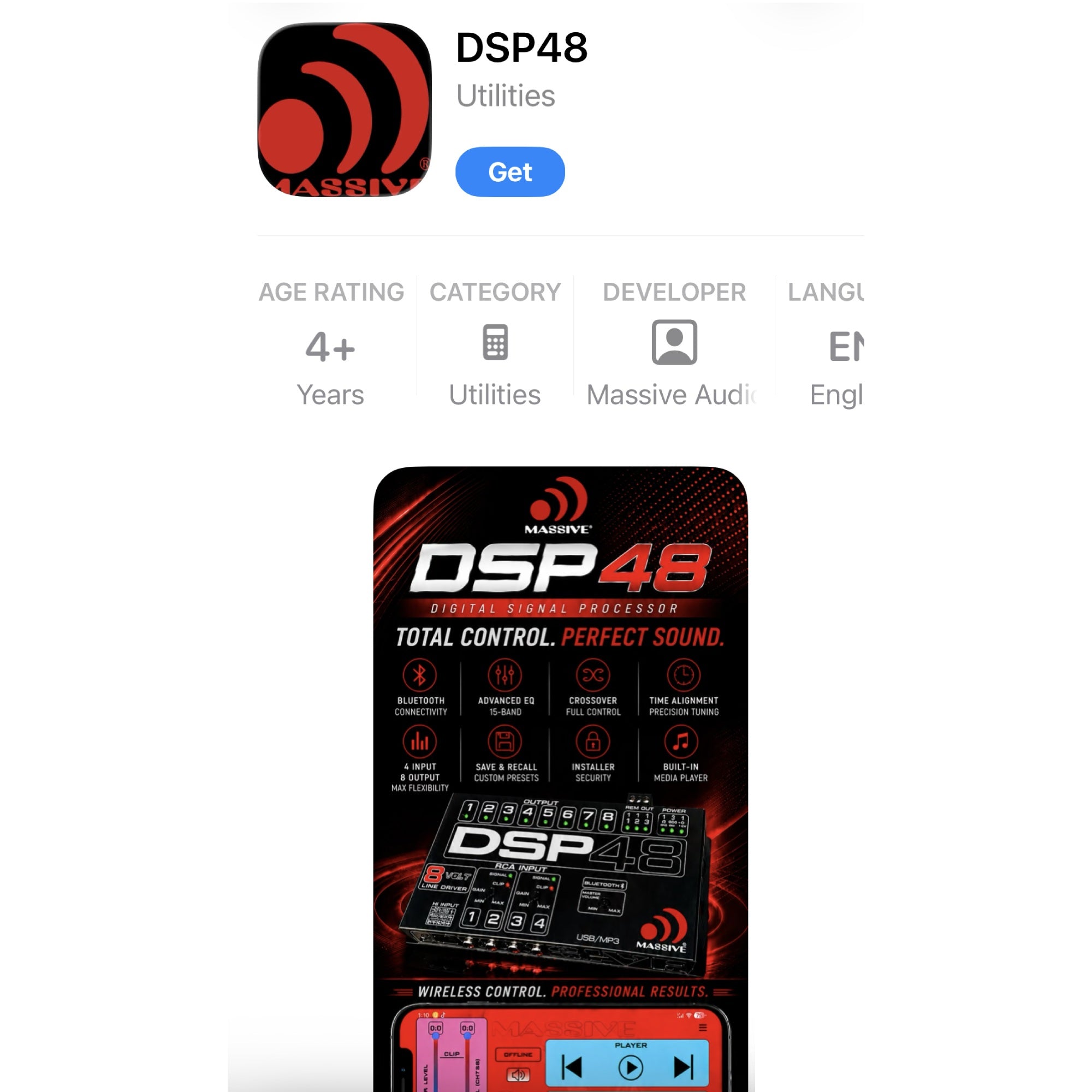

Use the dedicated DSP48 app for iOS and Android to make adjustments in real time through Bluetooth® or USB. Stream music through Bluetooth®, play MP3 audio through USB, and save up to six tuning presets. Preset files can also be exported, imported and shared with other DSP48 users.
An Analog Devices processor, 48 kHz sampling and 24-bit conversion provide the foundation for detailed system tuning. The compact aluminum housing, hardware master-volume knob and visual signal indicators make the DSP48 convenient to install and operate.
Flexible Inputs and Outputs
-
Four input channels accepting high-level speaker signals or low-level RCA signals.
-
Input summing for combining signals from up to four input channels.
-
Eight independently configurable RCA output channels.
-
RCA output voltage of 8 Vrms.
-
Automatic 2-channel and 4-channel routing modes.
-
Custom routing and input mixing for individual output channels.
-
Two-channel stereo input from Bluetooth® streaming or USB audio.
Digital Signal Processing
-
Analog Devices digital signal processor.
-
48 kHz sampling frequency and 24-bit conversion.
-
Selectable 7-band or 15-band parametric EQ per output channel.
-
Adjustable EQ frequency, gain and Q.
-
EQ adjustment range of 25 Hz to 16 kHz, ±12 dB gain and Q from 0.5 to 10.
-
Individual EQ band enable/disable controls.
-
EQ bypass, channel reset, reset-all and copy functions.
-
Independent high-pass and low-pass crossovers on each output channel, with combined operation for band-pass filtering.
-
Crossover adjustment from 10 Hz to 20 kHz.
-
Bessel, Butterworth and Linkwitz-Riley crossover alignments.
-
Crossover slopes of 12, 24, 36 and 48 dB per octave.
-
Time alignment from 0 to 108 ms in 0.01 ms steps.
-
Delay entry/display in milliseconds, inches or centimeters.
-
Selectable 0°/180° polarity per output channel.
-
Individual output-level adjustment from −60 dB to 0 dB.
-
Channel-pair linking for coordinated adjustments.
App Control and Playback
-
Dedicated DSP48 app for iOS and Android with real-time adjustment through Bluetooth® or USB.
-
Real-time DSP adjustment through Bluetooth® or USB.
-
Built-in Bluetooth® audio streaming.
-
USB connectivity for app connection, firmware updates and MP3 playback.
-
Master-level control and separate subwoofer-level control for channels 7/8.
-
Master mute.
-
Storage for up to six user presets.
-
Preset file export, import and sharing between DSP48 users.
-
Custom device naming and password protection.
Hardware and Installation
-
Compact aluminum housing.
-
Hardware master-volume knob.
-
Input gain controls and two-stage clipping indicators.
-
LED signal-activity indicators for each output channel.
-
Bluetooth® connection-status indicators.
-
Four-channel high-level input through an 8-pin pluggable terminal block.
-
Three configurable remote-output controls, S1/S2/S3.
-
Adjustable remote-output delay from 0.5 to 23.3 seconds.
-
Stand-alone AD/DA conversion.
-
Operation from a 9–16 V DC supply in 12 V negative-ground vehicles.
- DSP Type: Analog Devices® Digital Signal Processor
- Sampling Frequency: 48 kHz
- Bit Depth: 24-Bit ADC/DAC
- Input Channels: 4 High-Level / Low-Level Inputs
- Output Channels: 8 RCA Outputs
- Maximum Speaker-Level Input Voltage: 8 Vrms
- Maximum RCA Input Voltage: 4 Vrms
- Input Sensitivity Range: 0.5V to 22V
- Maximum RCA Output Voltage: 8 Vrms
- High-Level Input Impedance: 20 kΩ
- RCA Input Impedance: 25 kΩ
- RCA Output Impedance: 220 Ω
- Signal-to-Noise Ratio (S/N): >100 dB
- Total Harmonic Distortion (THD): <0.01%
- Equalizer Type: Selectable 7-Band or 15-Band Parametric EQ
- EQ Frequency Range: 25 Hz to 16 kHz
- EQ Gain Range: ±12 dB
- Q Factor Range: 0.5 to 10
- Crossover Frequency Range: 10 Hz to 20 kHz
- Filter Types: High-Pass, Low-Pass, Band-Pass
- Crossover Alignments: Bessel, Butterworth, Linkwitz-Riley
- Crossover Slopes: 12 / 24 / 36 / 48 dB per Octave
- Time Alignment: 0 to 108 ms
- Time Alignment Resolution: 0.01 ms Steps
- Phase Adjustment: 0° / 180° Per Channel
- Bluetooth® Audio Streaming: Built-In
- USB Connectivity: DSP Configuration, Firmware Updates & Audio Playback
- Preset Memory: Up to 6 User Presets
- Remote Turn-On Output: 12V REM OUT
- Remote Output Delay: Adjustable from 0.5 to 23.3 Seconds
- REM OUT Current Capacity: 100 mA
- Operating Voltage: 9V to 16V DC
- Idle Current Draw: <500 mA
- Dimensions (L × W × H): 190.4 × 95 × 24 mm
- Dimensions (L × W × H): 7.50" × 3.74" × 0.94"
KEY PERFORMANCE HIGHLIGHTS
-
Four Inputs with Summing and Eight Independently Configurable Outputs
-
8 Vrms RCA Output Voltage
-
Selectable 7-Band or 15-Band Parametric EQ Per Channel
-
24-Bit Conversion and 48 kHz Sampling
-
>100 dB Input Signal-to-Noise Ratio
-
<0.01% Input Total Harmonic Distortion
-
Real-Time App Tuning for iOS and Android
-
Bluetooth® Streaming and USB MP3 Playback
-
Time Alignment in 0.01 ms Steps
-
Independent Crossovers and 0°/180° Polarity Control
-
Up to Six User Presets with File Import and Export
