SKU: DSP48

DSP48 - Digital Signal Processor with Bluetooth® Audio Streaming

Sale price$ 249.99

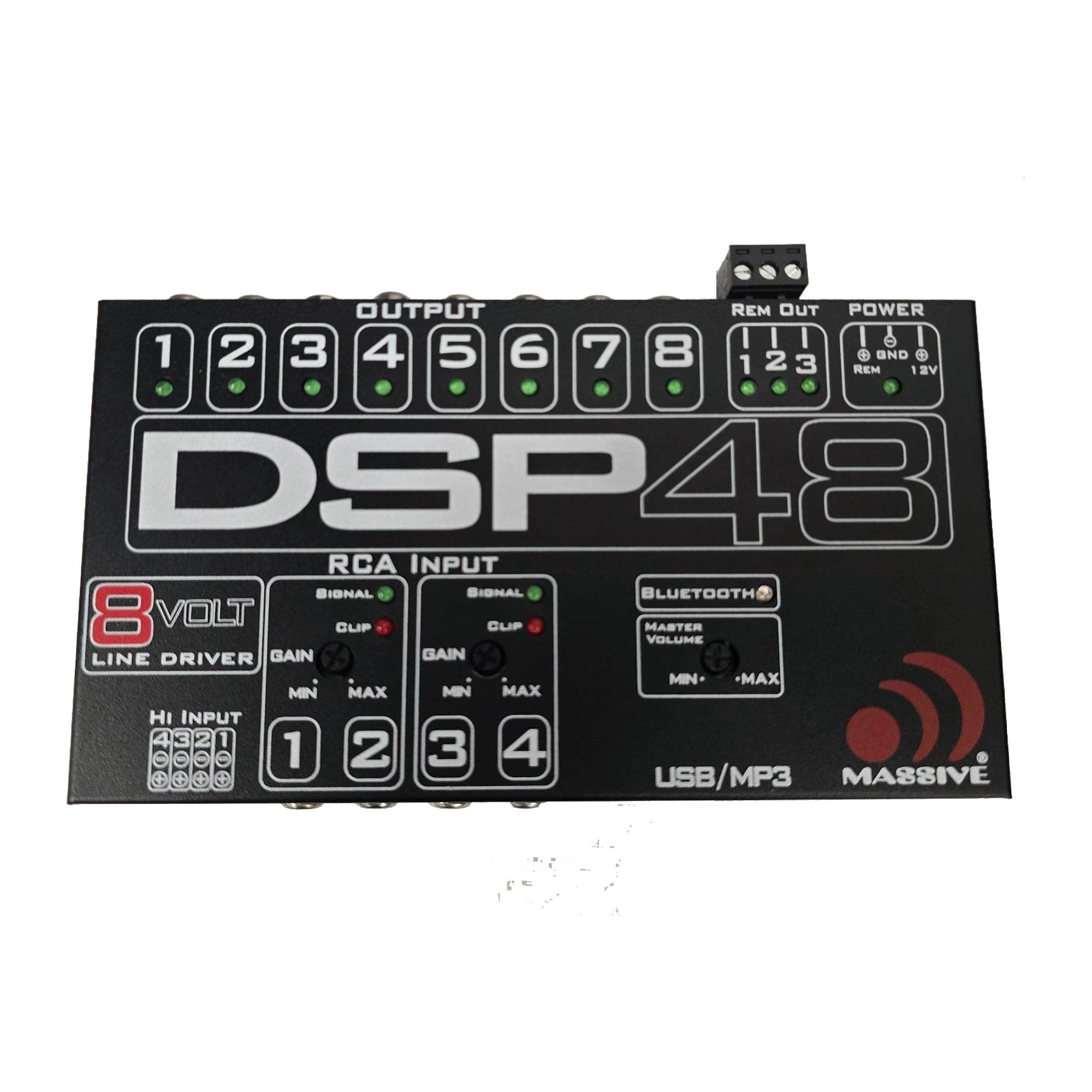

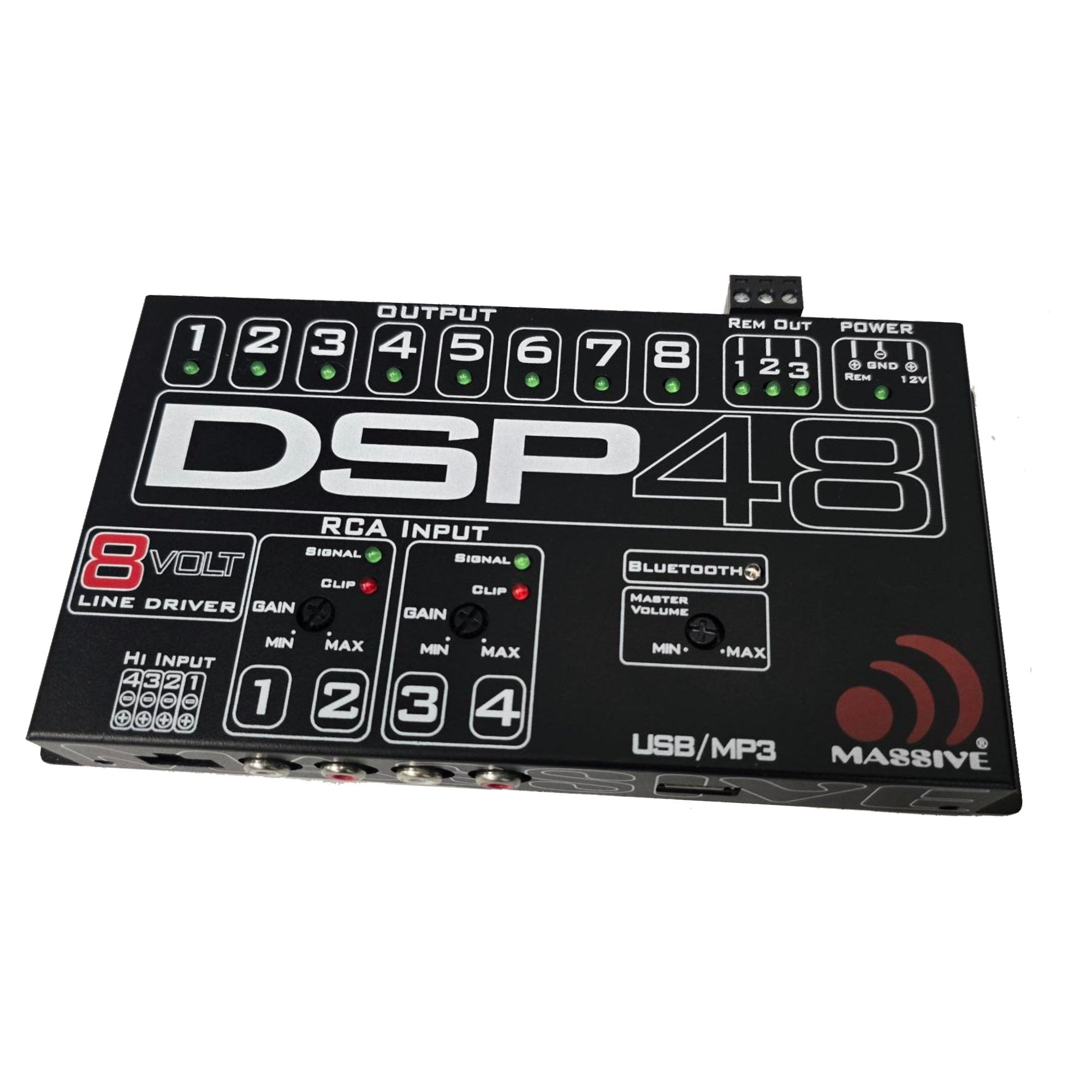

This powerful digital signal processor (DSP) is packed with features to take your vehicle's audio system to the next level. Whether you're upgrading a factory setup or building a custom soundstage, the DSP48 allows you to fine-tune every aspect of your sound for crystal-clear highs, punchy mids, and deep bass. Its compact aluminum housing allows for easy installation in hidden locations, and with both analog and digital inputs, the DSP48 is compatible with a wide range of audio systems.

*BY PURCHASING THIS HIGH  PERFORMANCE PRODUCT YOU AGREE TO THE TERMS AND CONDITIONS SET FORTH IN THE LIMITED WARRANTY EXCLUSION POLICY

DSP48 USER GUIDE

  • Eight (8) fully configurable output channels capable of 4V rms (12.5V pp) RCA output
  • Eight (8) summing input channels, compatible with Low-Level& High-Level input types
  • Bluetooth® Audio Streaming with Codec for audiophile audio quality
  • Elite Audio Reproduction from:
    a) 24-bit resolution ADC/DAC’s
    b) 56-bit double precision signal processing
    c) Frequency Response from 10hz to 20Khz (+/- 1dB)
    d) THD (Total Harmonic Distortion) < 0.05%
    e) SNR (Signal to Noise Ratio) > 95dB
  • Audio Sign Processor:
    a) Precision crossover system: Linkwitz-Riley &Butterworth topologies
    b) 12 / 18 / 24 / 36 / 48 dB octave crossover slopes available
    c) Full Pass / High Pass / Low Pass / Band Pass / Peak /Shelving Filters
    d) Up to 31 Parametric equalizer bands with adjustable frequency & bandwidth
    e) Full Time-Alignment correction & Phase rotation
    f) R.M.S. limiter with adjustable Threshold, Attack, & Decay
  • DSP Type: Analog Devices® Digital Signal Processor
  • Sampling Frequency: 48 kHz
  • Bit Depth: 24-Bit ADC/DAC
  • Input Channels: 4 High-Level / Low-Level Inputs
  • Output Channels: 8 RCA Outputs
  • Maximum Speaker-Level Input Voltage: 8 Vrms
  • Maximum RCA Input Voltage: 4 Vrms
  • Input Sensitivity Range: 0.5V to 22V
  • Maximum RCA Output Voltage: 8 Vrms
  • High-Level Input Impedance: 20 kΩ
  • RCA Input Impedance: 25 kΩ
  • RCA Output Impedance: 220 Ω
  • Signal-to-Noise Ratio (S/N): >100 dB
  • Total Harmonic Distortion (THD): <0.01%
  • Equalizer Type: Selectable 7-Band or 15-Band Parametric EQ
  • EQ Frequency Range: 25 Hz to 16 kHz
  • EQ Gain Range: ±12 dB
  • Q Factor Range: 0.5 to 10
  • Crossover Frequency Range: 10 Hz to 20 kHz
  • Filter Types: High-Pass, Low-Pass, Band-Pass
  • Crossover Alignments: Bessel, Butterworth, Linkwitz-Riley
  • Crossover Slopes: 12 / 24 / 36 / 48 dB per Octave
  • Time Alignment: 0 to 108 ms
  • Time Alignment Resolution: 0.01 ms Steps
  • Phase Adjustment: 0° / 180° Per Channel
  • Bluetooth® Audio Streaming: Built-In
  • USB Connectivity: DSP Configuration, Firmware Updates & Audio Playback
  • Preset Memory: Up to 6 User Presets
  • Remote Turn-On Output: 12V REM OUT
  • Remote Output Delay: Adjustable from 0.5 to 23.3 Seconds
  • REM OUT Current Capacity: 100 mA
  • Operating Voltage: 9V to 16V DC
  • Idle Current Draw: <500 mA
  • Dimensions (L × W × H): 190.4 × 95 × 24 mm
  • Dimensions (L × W × H): 7.50" × 3.74" × 0.94"

Key Performance Highlights

  • 8-Channel DSP with Independent Channel Control
  • 8V RMS High-Voltage RCA Outputs
  • 24-Bit Digital Audio Processing
  • <0.01% Total Harmonic Distortion
  • Real-Time Bluetooth® App Tuning
  • OEM Integration with High-Level Input Summing
  • 0.01ms Precision Time Alignment
  • Selectable 7-Band or 15-Band Parametric Equalization
  • Advanced Crossover Network with Multiple Filter Topologies and Slopes
  • 48kHz Sampling Rate
  • 100cG Signal-to-Noise Ratio
