DESCRIPTION
The BLADE X "BPX SEIRES" Series Amplifiers are designed with our “Live, Loud, and Play Hard” motto. All amplifiers have built-in OEM line converters with RCA inputs that can take a high-level speaker signal at up to 9 Volts directly in. By sensing the DC offset of a factory radio the amplifier can activate the ATO (Auto Turn On) feature and convert the 12V turn-on into a 12V switched-out. All Blade X amps use Mil Spec PCBs, SMD parts, 5-way protection, full MOSFET high-grade switching devices and all comply with the “World Wide Standards”, “ROHS”, “E-Mark” and are CTA2006 Compliant. This ensures that no competition can stand up to the BLADE BP when it comes to features, performance, and value.
Manuals & Downloads
FEATURES
- New Thicker Heatsink
- Built-in OEM Line Converter
- 2 Ohm Stable Design
- Class A/B
- Mil-Spec PCB with SMD parts
- Built-in Noise Reduction Circuitry
- Full MOSFET with High-Grade Switching Devices
- Built-In Auto Sensing Turn-On Function (Hi-Inputs)
- 12V Remote Output for External Devices (Hi-Level Inputs)
- 0dB ~ 12dB Bass Boost
- Next Generation Advanced 5-Way Protection Circuitry
- World Wide Standards Compliant (RoHS, E-Mark, CTA-2006, CE)
SPECIFICATIONS
Peak Output Power @ 14.4V | 250W x 4 + 500W |
1 Ohm RMS | n/a |
2 Ohm RMS | 160W x 4 + 500W x 1 |
4 Ohm RMS | 80W x 4 + 200W x 1 |
4 Ohm Bridged | 320W x 2 + 200W x 1 |
Input Level | 0.2~9.0v |
Freq. Response | 15Hz~30KHz |
THD at 4 Ohm Load 30% Rated Power | <0.1% |
S/N Ratio | >90dB |
Bass Boost | 0~12dB (45Hz) |
Minimum Load | 2 Ohm Stereo + 2 Ohm Mono |
Gain Remote | UR1 (Optional) |
Dimension | 2"H x 7.1"W x 15"L |

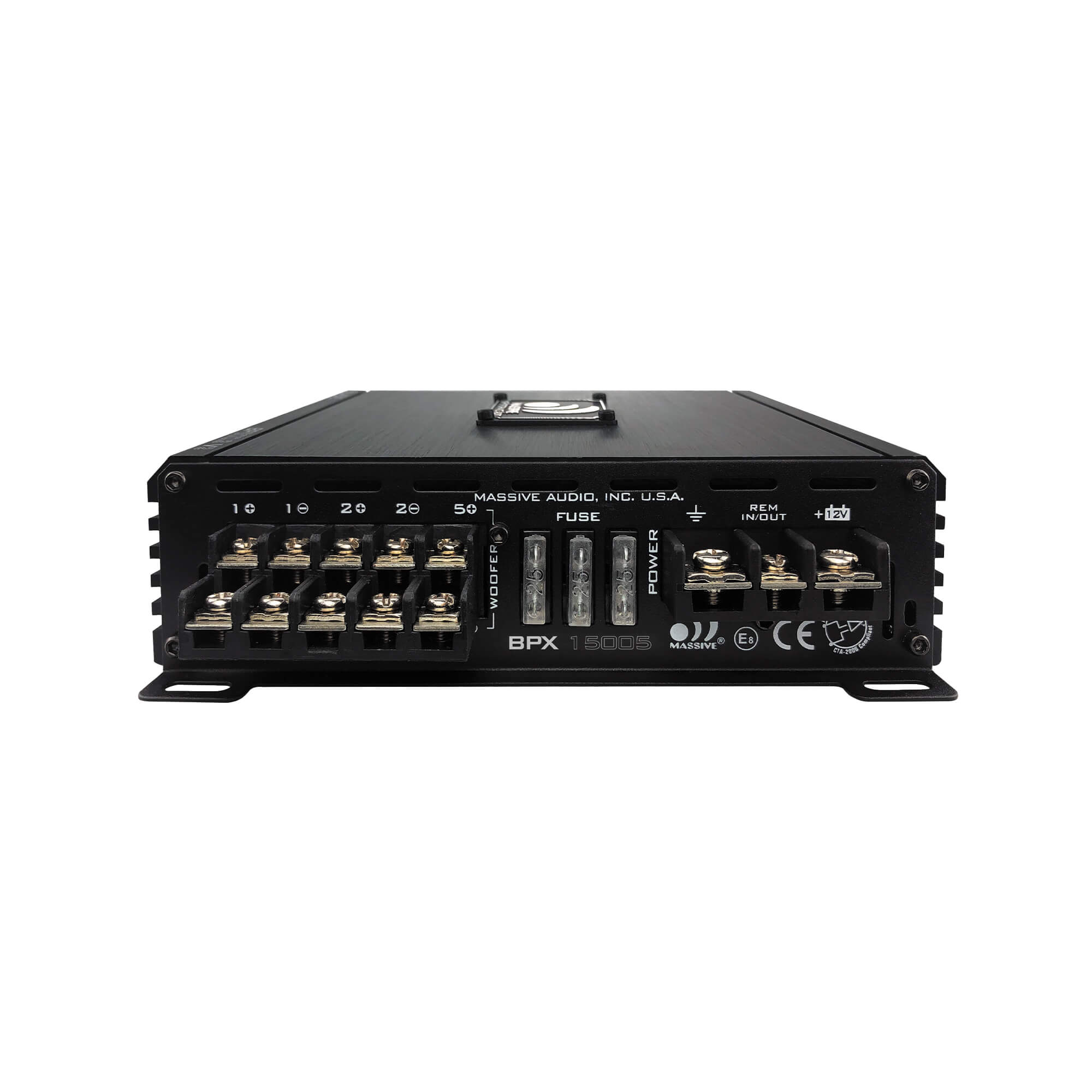

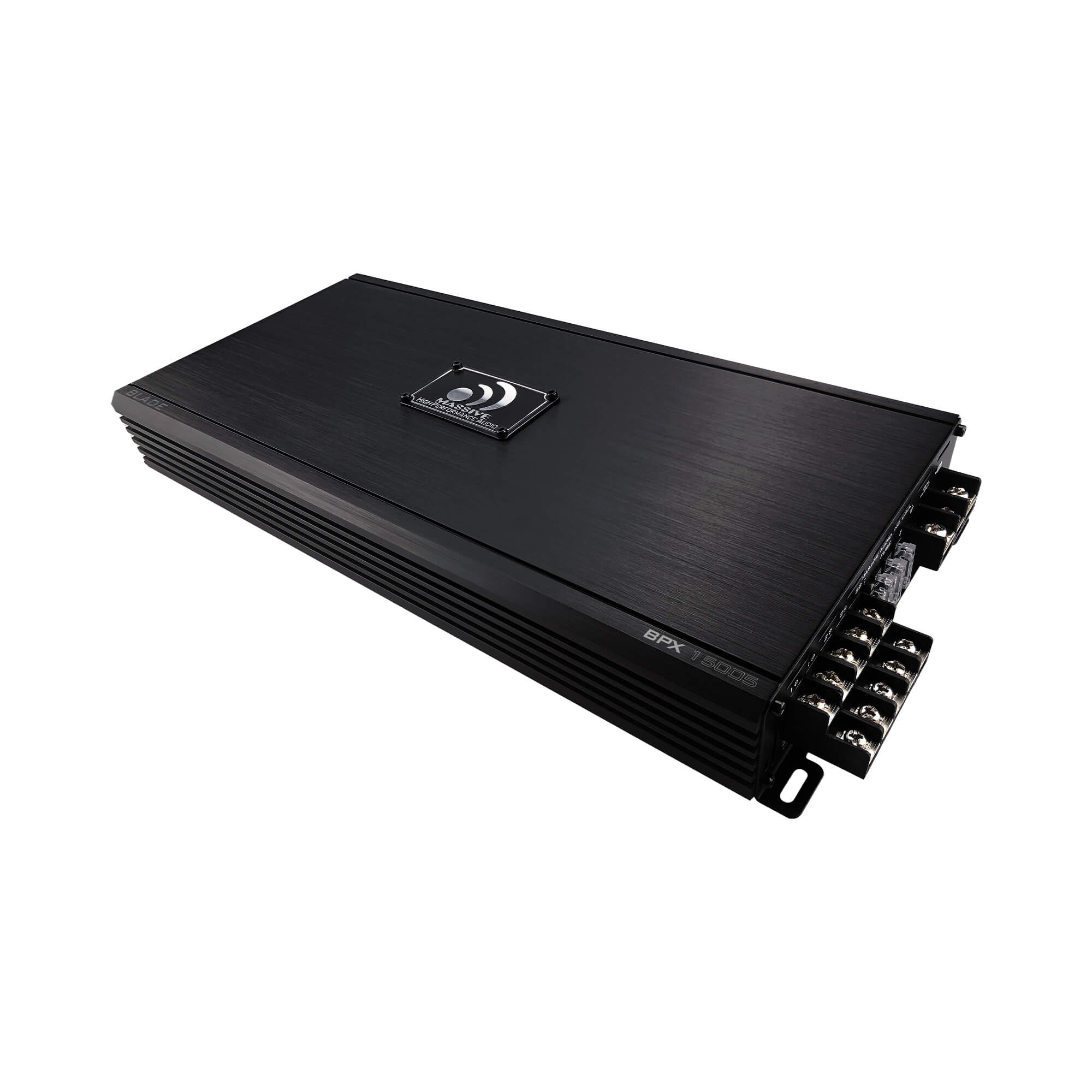

BPX15005 - 80 Watts RMS x 4 + 500 Watts @ 2 Ohm Full Range 5 Channel Amplifier
Sale price$ 289.99
Regular price (/)
$ 289.99
