BP2000.1 V2 - 1000 WATTS RMS X 1 @ 1 OHM DIGITAL MONO AMPLIFIER

The BLADE BP Series Amplifiers are designed with our “Live, Loud and Play Hard” motto. All amplifiers have built-in OEM line converters with RCA inputs that can take a high level speaker signal at up to 9 Volts directly in. By sensing the DC off set of a factory radio it can activate the ATO (Auto Turn On) feature and convert the 12V turn on into a 12V switched out. The BP2000.1 is a Class “D” amplifier that can play down to 1 Ohm minimum. All Blade “BP” amps use Mil Spec PCBs, SMD parts, 5 way protection, full MOSFET high grade switching devices and all comply with the “World Wide Standards”, “ROHS”, “E-Mark” and are CTA2006 Compliant. This ensures that no competition can stand up to the BLADE BP when it comes to features, performance and value.



BP2000.1 V2 Manual

• Built-In OEM Line Converter
• 1 Ohm Stable Design
• Class Full Range Digital
• Mil Spec PCB with SMD parts
• Built-in Noise Reduction Circuitry
• Full MOSFET with High Grade Switching Devices
• Built-In Auto Sensing Turn On Function (Hi-Inputs)
• 12V Remote Output for External Devices (Hi-Level Inputs)
• 0dB ~ 12dB Bass Boost
• Next Generation Advanced 5 Way Protection Circuitry
• World Wide Standards Compliant (RoHS, E-Mark, CTA-2006, CE)



Peak Output Power @ 14.4V	2000W x 1
1 Ohm RMS	1000W x 1
2 Ohm RMS	900W x 1
4 Ohm RMS	500W x 1
4 Ohm Bridged	N/A
Input Level	0.2~9.0v
Freq. Response	15Hz~250Hz
THD at 4 Ohm Load 30% Rated Power	<0.1%
S/N Ratio	>90dB
Bass Boost	0~6dB/12dB (45Hz)
Minimum Load	1 Ohm Mono
Gain Remote	UR1 (Optional)

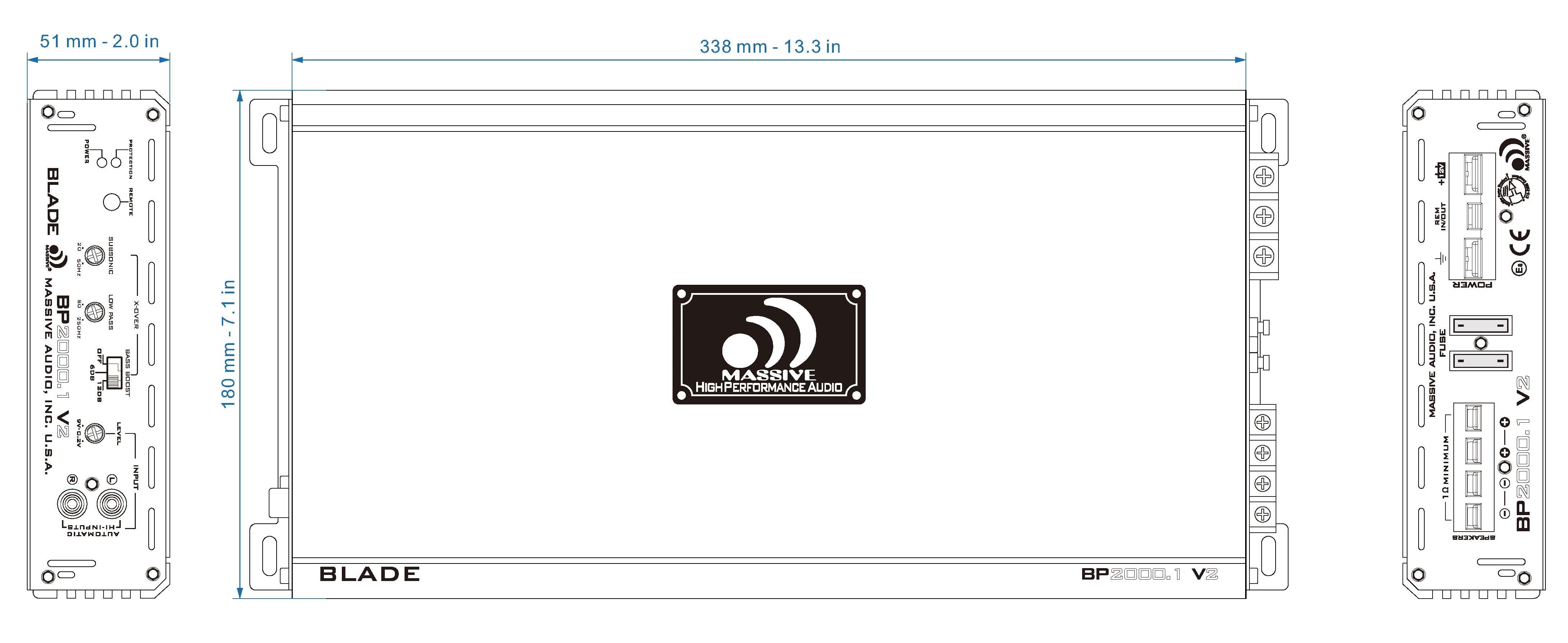

Dimension	2"H x 7.1"W x 13.4"L
