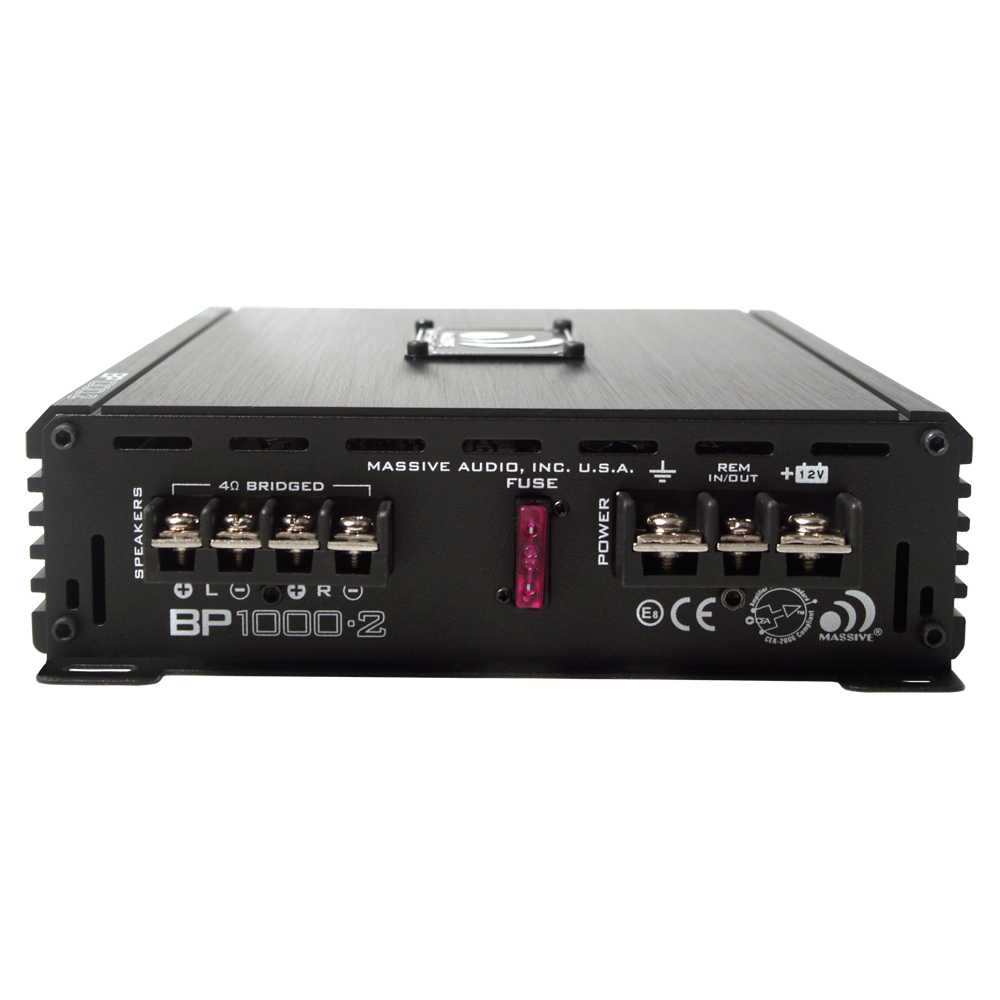

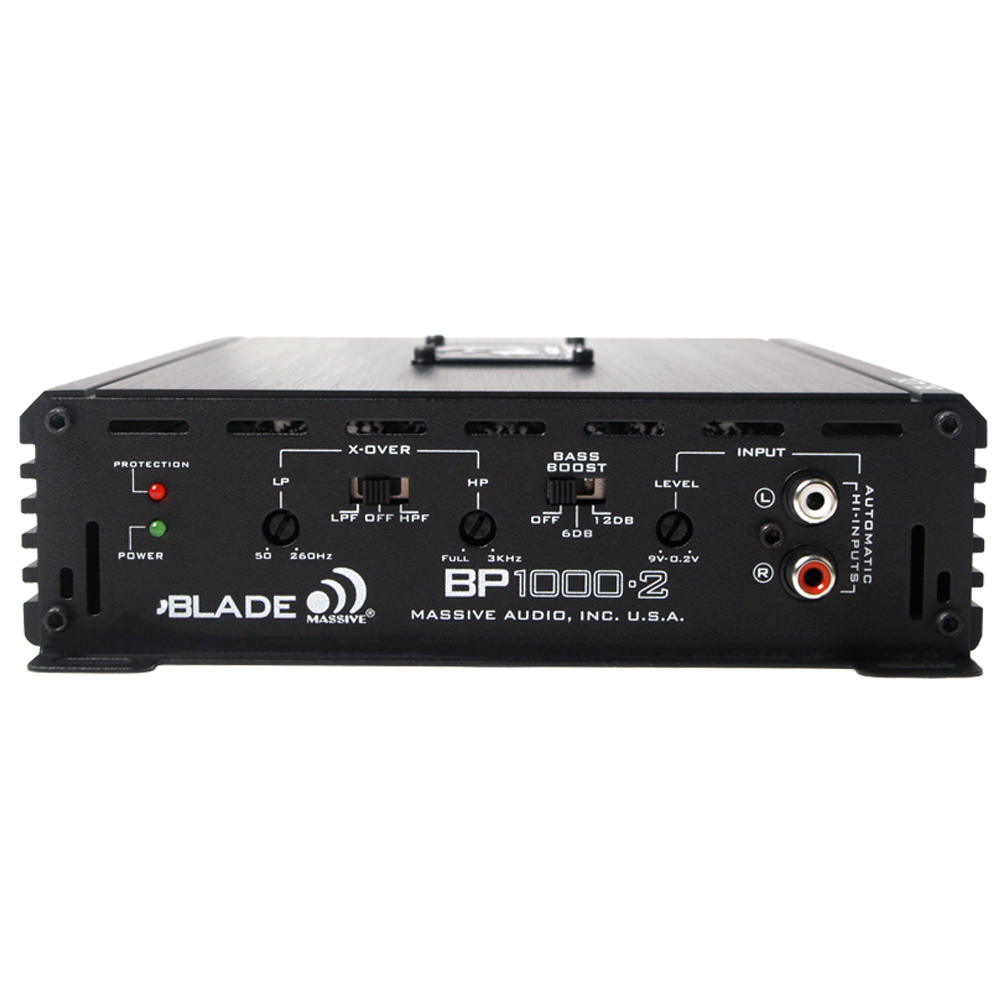

BP1000.2 - 160 Watts RMS x 2 @ 4 Ohm 2 Channel Amplifier

The BLADE BP Series Amplifiers are designed with our “Live, Loud and Play Hard” motto. All amplifiers have built-in OEM line converters with RCA inputs that can take a high level speaker signal at up to 9 Volts directly in. By sensing the DC off set of a factory radio it can activate the ATO (Auto Turn On) feature and convert the 12V turn on into a 12V switched out. Blade “BP” are Class AB designed with a minimum per channel impedance operation of 2 Ohm with the exception of the BP2000.1, BP1200.1 which are Class “D” and can play down to 1 Ohm minimum. The monster BP4000 & BP6000 are full range Digital and 2 OHM stable. All Blade “BP” amps use Mil Spec PCBs, SMD parts,  5 way protection, full MOSFET high grade switching devices and all comply with the “World Wide Standards”, “ROHS”, “E-Mark” and are CTA2006 Compliant. This ensures that no competition can stand up to the BLADE BP when it comes to features, performance and value.



BP1000.2 Manual

• Built-In OEM Line Converter
• 1 Ohm Stable Design (Mono Amps-BP1200.1, BP2000.1)
• 2 Ohm Stable Design (Full Range Mono Amps- BP600.1, BP1000.1, BP4000.1, BP6000.1)
• Mil Spec PCB with SMD parts
• Built-in Noise Reduction Circuitry
• Full MOSFET with High Grade Switching Devices
• Built-In Auto Sensing Turn On Function (Hi-Inputs)
• 12V Remote Output for External Devices (Hi-Level Inputs)
• 0dB ~ 12dB Bass Boost
• Next Generation Advanced 5 Way Protection Circuitry
• World Wide Standards Compliant (RoHS, E-Mark, CTA-2006, CE)



Peak Output Power @ 14.4V	500W x 2
1 Ohm RMS	n/a
2 Ohm RMS	240W x 2
4 Ohm RMS	160W x 2
4 Ohm Bridged	640W x 1
Input Level	0.2~9.0v
Freq. Response	15Hz~30KHz
THD at 4 Ohm Load 30% Rated Power	<0.1%
S/N Ratio	>90dB
Bass Boost	0~6dB/12dB (45Hz)
Minimum Load	2 Ohm Stereo
Gain Remote	n/a
Dimension	2"H x 7.1"W x 9.4"L
