The H2BT was created to deliver powerful clean signal to your amplifiers with all the modern features required for streaming and tuning. Easy to use controls with a common sense layout will ensure that you get the most out of your audio experience.
The USB, SD, and BT readers that are used for streaming or using up to 64GB flash drives. AM/FM stations have 18 memory locations.
This CD-less single din, produces 50 watts per channel while the pre-amp output is adjustable up to 5v with a subwoofer output. This is essential for high performance, optimizing your amplifiers for outstanding sound quality and high SPL.
Change your style on demand with an array of color presets via the backlit RGB buttons without effecting the main white display. The two band equalizer allows you to adjust functions such as master level, bass, treble, balance, fade, and subwoofer controls easily. Connect to your USB via two USB ports which both have charging capability. Also onboard is a front facing AUX input jack.

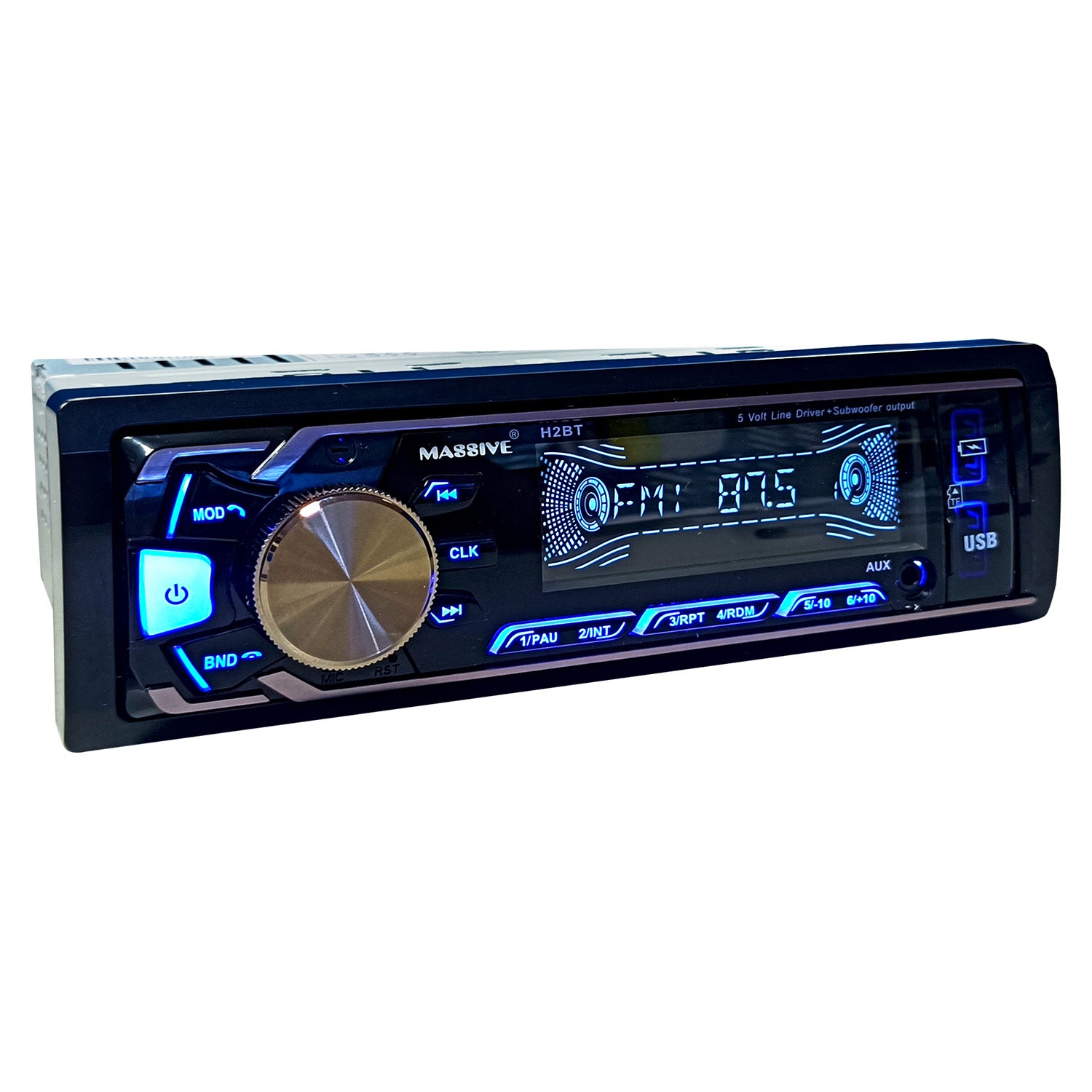

- Non CD, Mech-less Single Din USB/BT Receiver
- USB, SD, BT Reader / Streamer
- MP3, WMA, FLAC, MAV
- AM/FM Radio
- 30 Memory Locations
- Remote control
- RGB: 7 Selectable Colors
- Speaker Impedance: 4 Ohm
- Display: 3" VA White Backlit
- Pre-Outputs: 3 Pair (Front, Rear, Sub)
- Power: 50 x 4 Watts Max
- Equalizer: 2 Bands with Adjustable Bass, Treble, and Subwoofer
- Pre-amp output: 5v + Subwoofer Output
- Inputs: USB, SD, BT, Front AUX
- Mounting Dims: 7"(W) x 2"(H) x 3-7/8"(D)
Rated power source | 14.4V DC (11V to 16V operation) |
Maximum Current Consumption | 10 Amp |
Dimensions (W x H x D): Chassis | 178mm x 50mm x 150mm |
Bezel frame | 188mm x 58mm x 30mm |
Weight | 15.9 Oz / 452 grams |
Screen Size | 3” / 75 x 25mm |
Display Type | VA LCD |
Temperature Operation | -20°C to +60°C (14°F to 140°F) |
Frequency Range | FM: 87.5 ~ 107.9 KHz |
Presets Memory | 18 Stations |
Region | North America “USA” |
Sensitivity Adjustment | LOC / DX & ST / Mono |
Sensitivity | <20dB |
Stereo Separation | >25dB |
Maximum Power Output | 50W X 4 Ch @ 4 ohm (14.4v) |
Continuous Power Output | 17W x 4 Ch @ 4 ohm (14.4v) |
Pre-output Level | 5 Volts (14.4V) |
Equalizer | 2 bands (Bass: 60Hz, Treble: 10KHz) |
Gain | +/- 7dB |
Preset EQ | Jazz / Rock / Pop / Classic |
Audio Control | Volume / Balance / Fader / Loudness / Bass / Treble |
Subwoofer Control | Vol (0-20) / Cut (80/120/160 Hz) |
Signal to Noise Ratio | >60dB |
THD | <0.3% |
Frequency Response | 20Hz – 20Khz |
Bluetooth Version / Services | V4.1 / Audio Streaming / Hands Free calls |
Audio Protocol | A2DP v1.2 Sink (SNK) |
Aux input | Front 3.5mm Jack Stereo Audio |
Microphone | Built-In Microphone on faceplate |
Remote Control | Frontal IR Receptor |
Type/Class | V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS |
Format Files Supported | MP3, WMA, FLAC, MAV |
Info Display Format | ID3 Tag |
Memory Size Reader | up to 64 Gb |
Max Current Supply | 1.5 Amp (Charging USB port) |
Number of USB Ports | 2 x Front (1 for Audio / 1 for Charging) |
SD Slot | 1 x Front Micro SD |
